Architectural Panic Exit & Security Door Systems
Explore our factory-engineered commercial escape doors, luxury entry pivot systems, and heavy-duty aluminum casement solutions built to international building codes.

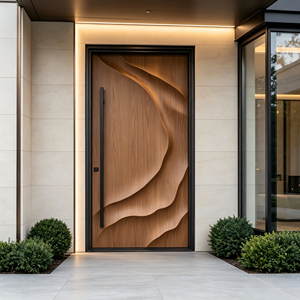

American Style Modern Oversize Aluminum Pivot Door With 3D Fluid Wave Carving For Luxury Villa Entrance
- Profile Depth: 100mm Solid Alloy
- Glass Rating: Impact Laminated
- Application: Villa / Commercial

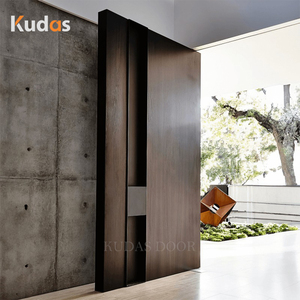

Main Entrance Exterior Walnut Solid Wood Large Front Door Single Aluminum Modern Front Entry Wooden Pivot Door
- Material: Aluminum + Solid Wood
- Locking: Multi-Point Electronic
- Thermal Break: Polyamide PA66

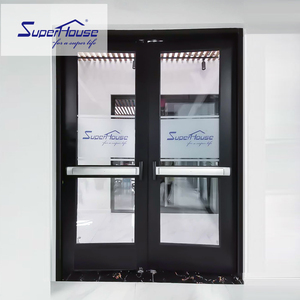

Superhouse Double Opening Soundproof Anti-theft Aluminum Frame Double Glazing Escape Door With Panic Bar
- Panic Hardware: ANSI/BHMA Grade 1
- Acoustic Rating: STC 42 dB
- Fire Resistance: UL 10C / EN 1634

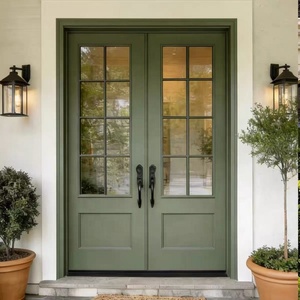

Factory Outlet Aluminum Entrance Security Door Main Swing Double Entry Door Modern Exterior Front Door With Glass
- Frame Alloy: 6063-T6 Extrusion
- Glazing: Double Tempered Low-E
- Hardware: German Heavy-Duty

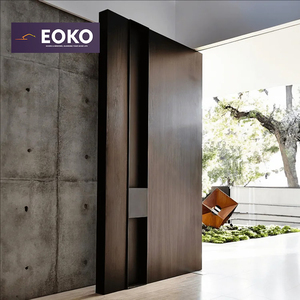

EOKO Custom Wooden Grain Front Entry Main Security Aluminum Decorous Exterior Pivot Door for America House
- Finish: Sublimated Powder Coat
- Weather Sealing: Triple EPDM
- Standard: NFRC / CSA Compliant

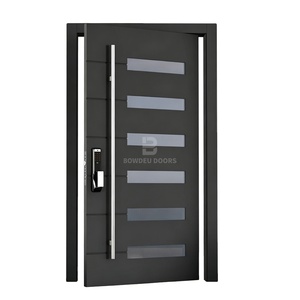

Modern Residential Exterior Door for Custom Metal Oversized Villa Entrance Home Project Security Front Entry Pivot Door
- Max Height: Up to 4000mm
- Security Class: RC3 Anti-Burglary
- Pivot Hardware: 500kg Capacity

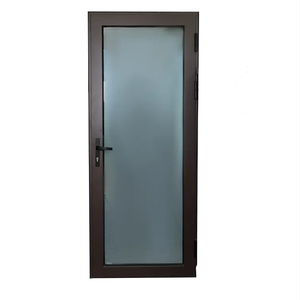

RG50 Casement Door Soundproofing Double Tempered Glass Aluminum Doors Slim Open Door For Home
- Sightline: 50mm Ultra-Slim
- Infiltration: AS 2047 Certified
- Glazing: Argon-Filled Low-E

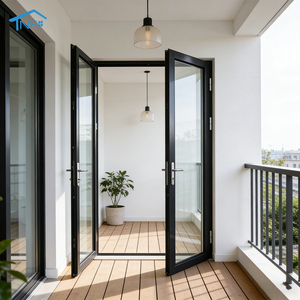

Foshan Aluminum Alloy Entry Doors Factory High Quality Modern Finished Swing Glass Door for Villa CE Certified
- Certification: CE / ISO9001
- Locking System: 5-Point Latch
- Wind Load: Up to 4500 Pa
Manufacturing Authority: Fortor Security Door Co., Ltd.
As international life-safety codes become increasingly strict, architectural specification of commercial panic exit devices and emergency egress door assemblies requires uncompromised precision, verified compliance, and direct factory accountability. Fortor Security Door Co., Ltd. operates as a leading China-based original equipment manufacturer (OEM) and custom system designer, specializing in high-performance aluminum panic hardware doors, thermal break exit systems, and oversized structural entrance doors.
Spanning an expansive 20,000 square meter autonomous manufacturing base in Guangdong, China, our facilities integrate advanced CNC profile cutting, automated corner crimping, robotic gasket insertion, and rigorous pre-shipment mock-up testing. With over 17 years of engineering experience supplying international contractors, commercial developers, and hardware importers across 30+ countries, Fortor bridges the gap between cost-efficient Chinese manufacturing and stringent Western building performance standards (NFRC, AS 2047, CSA, ENERGY STAR, and UL 10C protocols).
Anatomy of Commercial Panic Exit Doors: Mechanics, Certification & Performance
Emergency egress assemblies serve a dual architectural requirement: providing instantaneous, unhindered exit functionality under emergency panic conditions while maintaining severe building envelope security, thermal containment, and sound attenuation during standard daily operations. Sourcing panic hardware doors from China requires a granular understanding of hardware mechanical grades and code compliance standards.
ANSI/BHMA A156.3 Grade 1 Hardware
Panic exit devices (touchbars, push bars, and crash bars) are rated under ANSI/BHMA standards. Grade 1 devices undergo minimum cycle testing of 1,000,000 continuous operation cycles. Fortor integrates premium Grade 1 rim devices, mortise locks, and concealed vertical rod (CVR) panic hardware engineered for high-traffic educational, healthcare, and retail infrastructure.
UL 10C & NFPA 252 Positive Pressure
Fire-rated escape door assemblies must withstand positive pressure fire exposure. Our thermal break aluminum and reinforced steel escape doors offer optional 20-minute, 45-minute, 90-minute, and up to 180-minute fire resistance ratings tested in alignment with UL 10C, NFPA 80, and BS EN 1634-1 life safety standard specifications.
Polyamide Thermal Barrier Engineering
Unlike traditional hollow commercial doors that suffer extreme thermal bridging, Fortor escape doors utilize heavy-wall 6063-T6 extruded aluminum profiles separated by multi-cavity Polyamide (PA66 GF25) thermal break strips. This yields system U-values down to 0.28 BTU/hr·ft²·°F (1.6 W/m²K), dramatically reducing HVAC thermal loss.
Classifying Panic Exit Devices for OEM Production
Selecting the optimal panic egress hardware configuration depends directly on occupancy load, fire door rating, exterior entry access requirements, and door profile material (glass-framed, aluminum panel, or solid core composite). Fortor provides four specialized mechanical configurations for global B2B buyers:
1. Rim Panic Exit Devices
Surface-mounted across the door width, latching directly into a frame-mounted strike plate. Rim devices represent the most durable, low-maintenance egress solution for single commercial doors and double doors equipped with a removable structural center mullion. Ideal for high-traffic emergency exits in sports arenas, warehouses, and transport hubs.
2. Mortise Lock Panic Hardware
Combines heavy-duty internal mortise lock body mechanisms concealed within the door stile with an interior panic push bar. Provides enhanced mechanical anti-pry resistance (up to 3,000 lbs of static exterior force) alongside electric strike integration for card key access control systems on active entrance doors.
3. Surface Vertical Rod (SVR) Systems
Utilizes top and bottom latching rods mounted onto the interior surface of the door leaf. SVR mechanisms provide immediate two-point latching security without requiring a central mullion on double egress doors. Essential for wide opening emergency exits in convention centers and industrial facilities.
4. Concealed Vertical Rod (CVR) Systems
Conceals vertical latch rods directly inside the vertical extrusions of thermal break aluminum door stiles. Protects internal latching components from vandal tampering, environmental corrosion, and physical damage, creating sleek architectural glass-framed escape doors for commercial office buildings.
Future Procurement & Engineering Development Trends (2025–2030)
The global commercial door and emergency hardware manufacturing landscape is undergoing rapid evolution driven by energy efficiency directives, smart access control convergence, and resilient building envelope requirements. B2B buyers sourcing from China must adapt to four prominent industry trends:
1. Smart Electrified Egress
Transition from manual panic bars to Motorized Latch Retraction (MLR) and Delayed Egress systems integrated into centralized building management systems (BMS), biometrics, and fire alarm triggers.
2. High Thermal & Acoustic
Eliminating thermal energy loss at exit locations through multi-chamber Polyamide thermal breaks, double-pane Low-E insulated glazing, and automatic drop-down EPDM acoustic bottom seals (STC 40+).
3. Hurricane & Impact Rating
Surge in demand across coastal regions (Florida HVHZ, Caribbean, South Pacific) for hurricane-tested egress doors featuring laminated structural glass and heavy-gauge 6063-T6 aluminum alloys.
4. Modular Prefab Procurement
Importers favor factory pre-assembled, pre-drilled panic hardware door packages. Direct OEM factory packaging minimizes expensive on-site installation labor and prevents hardware misalignments.
Commercial Egress & Panic Hardware Comparison Matrix
Compare key structural, safety, and acoustic performance parameters across major panic hardware door configurations engineered at Fortor Security Door Co., Ltd.:
| Door System Configuration | Panic Device Mechanism | Fire Resistance Rating | Wind Load / Water Tightness | Acoustic Performance | Primary Target Application |
|---|---|---|---|---|---|
| Superhouse Double Glazed Escape Door | ANSI Grade 1 Rim / CVR Push Bar | Up to 90 Mins (UL 10C optional) | 4500 Pa / 600 Pa Water | STC 42 dB | Commercial Facilities, Schools, Hospitals |
| Thermal Break Single Egress Door | Mortise Panic Lock Body | 20 to 45 Mins Positive Pressure | 3800 Pa / 450 Pa Water | STC 38 dB | Storefront Rear Exits, Retail Outlets |
| Oversized Glass Entrance Pivot Door | Concealed Bottom / Top Latch | Non-Fire Rated (Exterior Entry) | 5000 Pa (HVHZ Certified) | STC 36 dB | Luxury Villa Front Entry, Corporate Lobbies |
| RG50 Slim Frame Aluminum Casement | Multi-Point Latch + Surface Bar | Standard Egress non-combustible | 3000 Pa / 350 Pa Water | STC 35 dB | Modern Residential Balconies, Office Terraces |
| Heavy Steel Composite Double Panic Door | Surface Vertical Rod (SVR) Assembly | 120 to 180 Mins (UL 10C / EN 1634) | 4000 Pa Structural | STC 45 dB | Industrial Warehouses, Electrical Substations |
6-Step International Procurement Guide for Sourcing Panic Doors from China
Ordering panic exit hardware doors for international projects requires rigorous quality control checkpoints at every production phase. Follow Fortor's proven B2B procurement protocol:
Phase 1: Code Verification & Shop Drawings
Submit project opening dimensions, required egress width clear openings (ADA / IBC standards), handings, and localized wind-load/fire codes. Fortor engineers generate 2D CAD elevations and 3D cross-sectional shop drawings for architect sign-off prior to profile cutting.
Phase 2: Extrusion & Surface Finishing
High-grade 6063-T6 aluminum billets are extruded and treated. Surface finishes—including Qualicoat Class 2 powder coating, PVDF fluorocarbon spraying for coastal anti-corrosion, or anodizing—are applied to withstand 3,000-hour salt spray testing.
Phase 3: CNC Machining & Hardware Preparation
Computerized multi-axis CNC machines mill precise lock pockets, strike prep, hinge cutouts, and concealed vertical rod channels. Precision automated machining eliminates manual alignment errors during field installation.
Phase 4: Glazing & Thermal Strip Insertion
Double or triple insulated tempered glass units (IGUs) with Warm Edge spacers and Argon gas fill are structural silicone sealed. Polyamide thermal break strips are mechanically crimped into outer frames and sash extrusions.
Phase 5: Factory Pre-Assembly & Quality Audit
100% of finished panic hardware doors undergo physical shop assembly. Quality inspectors test panic bar release force (< 15 lbs per ADA code), latch smooth operation, acoustic seal compression, and squareness tolerance.
Phase 6: Export Packaging & Container Logistics
Doors are wrapped in protective film, padded with corner protectors, and packed inside fully enclosed fumigated plywood crates. Crates are sequentially numbered to match site installation schedules upon container arrival.
Frequently Asked Questions for Sourcing Panic Hardware Doors
Find authoritative answers to technical, regulatory, and logistics queries commonly raised by international hardware distributors, general contractors, and project developers.
What certifications do Fortor panic hardware doors hold for North American and European markets?
Fortor panic hardware door systems and components are engineered to comply with major regional building standards. Our certified series undergo testing aligned with NFRC (thermal and solar heat gain performance), AS 2047 (Australian window and door testing for air infiltration, water resistance, and structural deflection), CSA (Canadian Standards Association), and ENERGY STAR program benchmarks. Fire-rated exit door models reference UL 10C positive pressure fire standards and European EN 1634-1 testing. Complete laboratory test reports are provided during project submittal phases.
Can we supply our own branded panic hardware (e.g., Von Duprin, Dormakaba, LCN) for factory pre-cut preparation?
Yes, absolutely. Fortor offers full OEM/ODM hardware customization. B2B clients can either specify top-tier Chinese ANSI Grade 1 panic devices pre-installed in our factory or supply technical template drawings for global hardware brands (such as Von Duprin 99 series, Corbin Russwin, or Yale). Our multi-axis CNC machining centers drill and mortise the aluminum profiles to exact manufacturer templates, ensuring flawless drop-in jobsite hardware installation.
How do Fortor thermal break aluminum panic doors perform against forced entry and exterior security threats?
While panic exit devices are designed for immediate unlatching from the interior egress side, exterior security remains uncompromised. Fortor panic doors feature heavy-wall structural aluminum extrusions (minimum 2.0mm to 3.0mm wall thickness), high-security anti-vandal exterior trim levers, multi-point mortise deadbolts, and optional security laminated glass (e.g., 6mm Tempered + 1.52mm PVB + 6mm Tempered). System security complies with European RC2/RC3 burglary resistance standards.
What is the lead time for custom architectural panic exit door orders, and what is your minimum order quantity (MOQ)?
Standard production lead time is 25 to 35 business days following final approval of 2D/3D shop drawings and glass specifications. For large-scale commercial project developments or custom extrusion dies, lead times range from 35 to 45 days. We support international project buyers with flexible procurement terms: our Minimum Order Quantity starts at 1 set for commercial sample evaluation or luxury custom villa entry orders, with scalable volume pricing discounts applied to full 20ft/40ft container shipments.
How are panic doors engineered to pass severe wind-load and hurricane water infiltration tests?
For coastal and high-velocity hurricane zones (HVHZ), Fortor incorporates reinforced corner cleats, heavy-duty continuous stainless steel butt hinges or heavy pivot assemblies, and multi-tier perimeter EPDM gasket sealing systems. Our specialized commercial escape door profiles feature cascading internal drainage channels with non-return pressure valve weep covers, preventing water back-pressure up to 600 Pa and surviving structural wind pressures exceeding 4500 Pa.
What is the difference between Rim Panic Devices and Concealed Vertical Rod (CVR) systems for double exit doors?
Rim panic devices mount on the interior surface of the door and latch into a strike plate attached either to the door frame or a removable mullion bar. CVR systems conceal the vertical latching rods inside the internal cavity of the door stiles, latching into top frame headers and bottom floor threshold strikes. CVR devices eliminate the need for a center vertical mullion, offering a wider clear opening width and superior architectural aesthetics, though they require precise CNC profile milling performed during factory production.
Does Fortor provide on-site installation support or technical guidance for international contractors?
Fortor supplies comprehensive technical support for every project shipment. This includes exploded 3D assembly diagrams, step-by-step PDF installation manuals, fastener callout charts, and video walkthroughs prepared by our project engineering team. Additionally, our global network of distribution partners and local showrooms in key regions—including the United States, Canada, Australia, and Jamaica—offer local consulting and after-sales service support.
What surface finishes are recommended for panic exit doors installed in harsh coastal environments?
For coastal hospitality, beachfront resorts, or marine facilities, standard powder coatings can degrade due to salt spray corrosion. We strongly recommend specifying PVDF (Fluorocarbon) 3-Coat / 2-Bake Coatings or Qualicoat Class 2 / Class 3 Architectural Coatings with an anodized pre-treatment layer. These finishes offer superior UV color retention, chemical resistance, and pass rigorous 3,000-hour neutral salt spray (AAMA 2605) performance criteria.
Why Global B2B Buyers Trust Fortor Security Door Co., Ltd.
Partnering directly with a specialized manufacturer in China provides substantial commercial advantages, combining cost competitiveness with unyielding product engineering:
20,000㎡ Autonomous Factory
Every phase of fabrication—from aluminum profile extrusion, thermal break assembly, CNC machining, glass unit sealing, to final export crating—occurs within our modern manufacturing facility in Guangdong.
Stringent QA/QC Testing
Our dedicated quality assurance team enforces a 100% pre-shipment assembly policy. Every panic hardware bar, hinge torque setting, lock cylinder, and perimeter gasket is checked and video-documented before packing.
Global Export Footprint
With established export channels spanning North America, Australia, the Caribbean, Europe, and the Middle East, our logistics team handles export documentation, tariff compliance, and protected ocean freight crating.
Ready to Request a Technical Quote or Custom Shop Drawing?
Send your project elevations, door schedules, or hardware specifications to our senior engineering team. Receive an accurate, factory-direct proposal within 24 hours.
