High-Performance Commercial & Residential Entrance Systems
Explore our certified access control aluminum door series, customized for security, energy efficiency, and structural durability across global climate zones.
Heavy Duty Aluminum Spiral High Speed Door Windproof Anti-Theft Fast Door
- Drive Tech: Servo Motor / IP65
- Wind Resistance: Class 11 (Up to 120km/h)
- Access System: Radar / Loop / RFID

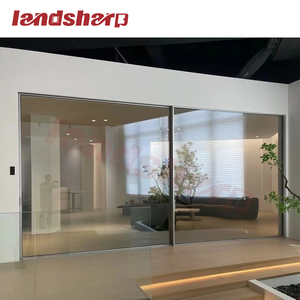

Modern Aluminum Double Glass Accordion Panoramic Frameless Sliding Door
- Profile Alloy: 6063-T6 Structural
- Glazing: Low-E Tempered Argon
- Track Load: Heavy-Duty Stainless Roller
Aluminum Entrance Door Impact Glass Front Doors Security System
- Impact Rating: Miami-Dade / SGP Glass
- Lock Mechanism: Multi-Point Electromechanical
- Thermal Strip: PA66-GF25 Polyamide
Custom Flush Oversized Front Entry Mahogany Oak Solid Wood Pivot Door
- Structure: Reinforced Aluminum Core
- Pivot Hinge: 500kg Capacity Hydraulic
- Smart Access: Biometric / Face Recognition
Armored Security Door Luxury Exterior Entry Double Leaf Anti-Theft Front Gate
- Anti-Theft Class: EN 1627 RC3 / RC4
- Seal Structure: Triple EPDM Perimeter
- Access Hardware: Smart Motor Mortise Lock
Custom Anti-Theft Galvanized Steel & Aluminum Hybrid Villa Security Door
- Composite Leaf: Galvanized + Aluminum Alloy
- Acoustic Rating: STC 42 dB Insulation
- Smart Integration: OSDP / Wiegand Relay
Modern Thermal Insulation Fire Prevention Luxury Entrance Pivot Door
- Fire Rating: UL 10C / EI30 Standard
- U-Factor: 0.26 BTU/h·ft²·°F (1.5 W/m²K)
- Opening Width: Up to 2400mm Single Leaf
Custom Slim Aluminum Framed Crittall Style Arched Double Glazed French Door
- Sightline: 16mm Ultra-Slim Profile
- Finish: Qualicoat Class 2 Powder
- Hardware: Concealed Electromagnetic Lock
The Evolution of Access Control Integration in Chinese Architectural Aluminum Extrusions
In modern commercial architectural design, high-density residential complexes, and luxury private villas, the main entrance door is no longer merely a physical boundary. It has evolved into an active electromechanical access control hub. Sourcing from premier China Access Control Aluminum Door Factories & Exporters gives global developers, contractors, and architects access to engineered systems that fuse structural extrusion integrity with intelligent building management system (BMS) protocols.
1. Electromechanical Lock Mortise Integration & Internal Wiring Conduits
Traditional door fabrication treats security hardware as a secondary addition. In contrast, leading Chinese OEMs design aluminum extrusion profiles with built-in internal wire chases and CNC-machined lock mortise cavities. Aluminum profiles produced using 6063-T6 architectural grade alloy provide nominal wall thicknesses ranging from 2.0mm to 3.5mm, ensuring structural stiffness when hollowed out for multi-point motorized locks.
- Concealed Power Transfer Hinge Loops: Protects low-voltage power lines (12V/24V DC) from weather exposure and mechanical tampering.
- Motorized Multi-Point Deadbolts: Driven by brushless DC motors that extend heavy-duty stainless steel bolts within 0.4 seconds upon signal receipt.
- Emergency Override & Panic Hardware: Compliant with ANSI/BHMA Grade 1 and EN 179/EN 1125 standards for life safety egress.
2. Communication Protocols & Authentication Integration
Export-ready aluminum access control doors support universal integration across open-architecture access controllers. Whether your project requires standalone biometric authentication or enterprise-grade network door controllers, top Chinese manufacturers design flexible wiring harnesses compatible with multiple signal standards:
- OSDP v2.2 (Open Supervised Device Protocol): AES-128 encrypted bi-directional communication between door reader and control panel.
- Wiegand Interface (26-bit to 56-bit): Universal legacy compatibility for RFID cards, keypads, and BLE transceivers.
- IP-PoE (Power over Ethernet) Locks: Direct network connection utilizing Cat6 cabling for both power and real-time event telemetry.
- Biometric & Touchless Access: Infrared 3D facial recognition, palm vein scanners, and smartphone NFC/Apple Wallet credentialing.
State-of-the-Art Manufacturing & Quality Assurance Standards
Fortor Security Door Co., Ltd. operates a 20,000㎡ specialized door and window manufacturing facility in Guangdong, China, delivering engineered access control systems to B2B clients in over 30 countries.
5-Axis CNC Precision Machining
Automatic extrusion processing lines maintain cutting tolerances within ±0.05mm, ensuring exact hinge mortises, lock strike cutouts, and concealed wire pathways.
AAMA 2605 Surface Coatings
Fluorocarbon (PVDF) 3-coat spraying and Qualicoat Class 2 powder finishes resist UV degradation, salt spray corrosion, and chemical exposure in harsh coastal environments.
Hardware Operational Testing
Every motor-driven lock assembly, pivot hinge, and hydraulic closer undergoes rigorous 500,000-cycle continuous testing before mass assembly approval.
Thermal & Structural Performance Specifications
Comparing global engineering standards for aluminum entrance profiles, insulated glazing units, and thermal break isolation.
| Performance Vector | Guangdong Export Standard | International Testing Benchmark | B2B Project Application Value |
|---|---|---|---|
| Thermal Conductivity (U-Factor) | Uf = 1.1 - 1.6 W/m²K (Thermal Break) | NFRC 100/200 / ENERGY STAR® | Drastically lowers HVAC consumption in extreme hot/cold climates. |
| Structural Wind Load | Designed for 4500 Pa - 6000 Pa | ASTM E330 / AS 2047 / Miami-Dade NOA | Prevents deflection and water penetration during hurricane conditions. |
| Air Infiltration Sealing | Class 4 (≤ 0.15 m³/m·h) | EN 12207 / AAMA 101/I.S.2/A440 | Triple EPDM gaskets eliminate drafts and ambient moisture ingress. |
| Sound Transmission Class (STC) | STC 38 dB to STC 45 dB | ASTM E90 / ISO 10140 Acoustic Test | Dampens low-frequency traffic noise in urban commercial projects. |
| Extrusion Alloy Tempering | Alloy 6063-T6 / Tensile ≥ 205 MPa | GB/T 5237 / ASTM B221 | Guarantees long-term structural integrity for oversized doors. |
Future Procurement & Development Trends in Access Control Doors
Macro shifts reshaping how international importers, architects, and master contractors source specialized aluminum door systems from China.
1. Native Factory-Integrated Smart Ecosystems
The market is rapidly shifting away from post-installation lock retrofits. Overseas buyers demand entrance doors with factory-prewired access control, integrated face-recognition camera housings, and embedded door position sensors ready for plug-and-play installation.
2. Oversized Panoramic Doors with Slim Sightlines
Architectural design demands larger glass clear openings combined with ultra-slim aluminum profiles. Engineering breakthroughs in structural glass bonding (SSG) and high-load hydraulic pivot hinges allow single door leaves to reach heights of up to 4.5 meters.
3. Decarbonization & Low-Carbon Recycled Extrusions
ESG procurement frameworks in North America and Europe require Environmental Product Declarations (EPDs). Leading Chinese factories now utilize green primary aluminum smelted with renewable hydro-energy, significantly reducing embodied carbon footprints.
Factory Floor & Quality Control Operations
Inside our Guangdong manufacturing base: profile processing, assembly testing, and protective export crating.
20,000㎡ Logistics & Production Plant
CNC Extrusion Cutting & Machining
Heavy Duty Steel & Plywood Packaging
Frequently Asked Questions by Global Importers & Specifiers
Everything you need to know about sourcing custom access control aluminum doors directly from China.
Is Fortor Security Door Co., Ltd. a direct factory manufacturer or a trading company?
How are access control electronics and wiring integrated into the aluminum door frames?
Which international building codes and test certifications do your doors meet?
Can we customize frame sizes, RAL colors, glass types, and hardware brands?
What technical information is required to receive a formal quotation?
What is the standard production lead time and export packaging method?
Do you provide CAD shop drawings and BIM models for architectural submittals?
How are warranty claims and replacement hardware handled internationally?
Accelerate Your Architectural Project With Factory Direct Engineering
Send us your door schedules, CAD elevation drawings, or access control specifications. Our engineering team will deliver a comprehensive project quote within 24 hours.
