Featured Architectural Door & Window Systems
High-precision customized door assemblies engineered for international structural codes (AS 2047, NFRC, CSA, and ASTM standards).
Custom Double Aluminum Alloy Glass French Entrance Door
Inquire Now
Modern High-Strength Anti-Theft Security Entry Door
Inquire Now

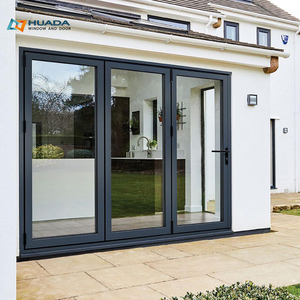

Luxury Villa Coastal Double Glazed Front Entry Doors
Inquire Now
XIYATECH Luxury Modern Arched Wrought Iron Double Doors
Inquire Now

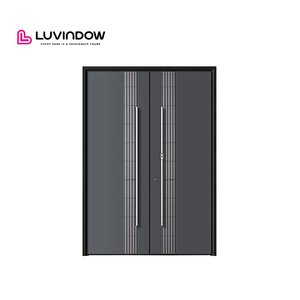

Premium Fire-Resistant Large Aluminum Main Entry Door
Inquire Now
Soundproof Double Glazed Exterior Glass Entry Door
Inquire Now
Armoured Explosion-Proof Stainless Steel Villa Main Door
Inquire Now

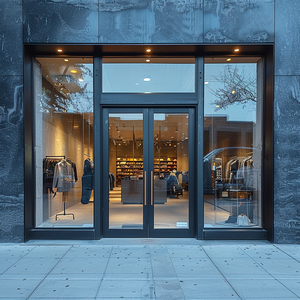

Commercial Tempered Glass Storefront Door Assembly
Inquire NowNavigating the Landscape of Chinese Pivot Door Manufacturing
The global demand for high-end architectural entrance systems has shifted dramatically toward oversized aluminum pivot doors. Unlike standard side-hinged casement doors, pivot doors operate on a vertical axis set at an offset position from the frame. This structural configuration transfers the door leaf’s total weight directly to the sub-floor via a heavy-duty hydraulic floor spring, allowing architects to specify grand entryways exceeding 3.5 meters in height and 2.0 meters in width without compromising mechanical smoothness or frame integrity.
As the global hub for architectural aluminum processing, Guangdong, China—specifically the Foshan manufacturing cluster—houses top-tier suppliers capable of engineering thermal-break aluminum profiles, multi-point smart security locks, and structural glazing assemblies. However, for B2B buyers, sourcing directly from China requires understanding critical technical parameters: air and water infiltration rates, structural wind load tolerance, thermal break material quality (PA66GF25), and precise alignment tolerances.
The B2B Sourcing Paradigm Shift
Leading overseas buyers are no longer sourcing simple door slabs. They demand complete, factory-tested system assemblies that include pre-drilled hardware channels, integrated drop-down weather seals, certified Low-E insulated glass units, and mill-to-order structural drawings ready for municipal permit approval.
Technological Innovations & Structural Evolution in Pivot Doors
Hydraulic Floor Spring Systems
Modern pivot doors utilize top-tier hydraulic floor springs (such as FritsJurgens or Dormakaba mechanisms) recessed into the floor slab. Key capabilities include 360° rotation options, hold-open angles at 90° and 180°, dynamic backcheck protection, and load capacities rated up to 500 kg per panel.
Multi-Chamber Thermal Break Profiles
To meet stringent Energy Star and NFRC energy codes, premium Chinese manufacturers deploy T66 6063-T5 aluminum extrusions outfitted with 24mm to 34mm Polyamide (PA66GF25) thermal insulation bars. This reduces overall U-values down to ≤ 1.4 W/m²K in insulated double-glazed pivot configurations.
Automated Weather Sealing
The primary historical challenge of pivot doors was weatherproofing. Advanced Chinese systems overcome this using magnetic perimeter gaskets combined with automatic pneumatic drop-down bottom seals that drop upon door closure, blocking air leakage and wind-driven rainwater.
Offset Axis vs. Central Axis Configuration
Selecting axis placement is vital for clear opening width calculations. An offset pivot axis (positioned 150mm to 300mm from the frame jam) creates an architectural focal point while maximizing clear walk-through clearance. A centered pivot axis splits large openings symmetrically, commonly used in high-traffic commercial store fronts.
Glazing Engineering & Structural Safety
Pivot doors exposed to extreme coastal winds require tempered or laminated Low-E safety glass meeting SGCC and EN 12150 standards. Triple-pane laminated glass options offer elevated sound insulation (up to STC 43 dB) and bullet-resistant/explosion-proof security performance.
Pivot & Entryway System Specifications Comparison
A side-by-side technical breakdown to assist architectural specifiers and sourcing agents in selecting the right product configuration based on environmental demand and project scale.
| System Category | Primary Material & Frame | Thermal U-Value Range | Wind Load Resistance | Acoustic Performance | Target Application |
|---|---|---|---|---|---|
| Thermal Break Glass Pivot Door | 6063-T5 Aluminum + 34mm PA66 Strip | 1.1 – 1.6 W/m²K | Up to 4.5 kPa (P3 Rating) | STC 38 – 43 dB | Luxury Residential, Coastal Villas |
| Armored Security Main Entry Door | Galvanized Steel / Stainless Steel Frame | 1.8 – 2.2 W/m²K | Up to 5.0 kPa | STC 40 – 45 dB | High-Security Mansions, Estate Entries |
| Aluminum Double French Door | Thermal Break 75/80 Series Profile | 1.3 – 1.8 W/m²K | Up to 3.5 kPa | STC 35 – 40 dB | Garden Entrances, Patios, Balconies |
| Wrought Iron Exterior Arch Door | Hand-Forged Iron + Tempered Glass | 2.2 – 2.8 W/m²K | Up to 4.0 kPa | STC 32 – 36 dB | Classic Estate Entrances, Custom Villas |
| Commercial Glass Storefront Door | Heavy-Duty Narrow Frame Aluminum | 2.0 – 2.5 W/m²K | Up to 3.0 kPa | STC 30 – 35 dB | Shopping Malls, Office Plazas, Showrooms |
Future Procurement Trends in China Pivot Door Manufacturing (2025–2030)
1. Smart Access Integration & Biometric Automation
The modern B2B market is rapidly moving away from traditional mechanical keys. 80% of overseas buyers now request pivot doors pre-engineered with concealed motorized multi-point locks compatible with facial recognition, fingerprint readers, home automation protocols (Zigbee, Z-Wave, Matter), and keyless RFID entries.
2. Oversized Glass Paneling & Ultra-Slim Frames
Architects are pushing limits with 4-meter tall single-panel glass pivot doors. Sourcing trend data indicates a 45% increase in orders for ultra-slim interlock profiles (sightlines under 25mm) that maximize natural sunlight while relying on structural silicone bonding to handle panel weight.
3. Low-Carbon Aluminum & Sustainable Finishes
Global green building codes (LEED, BREEAM) require suppliers to prove the environmental footprint of their extrusions. Premier Chinese manufacturers are implementing recycled aluminum billets, fluorocarbon (PVDF) eco-coatings, and anodized surface treatments resistant to salt-spray corrosion for over 30 years.
4. Prefabricated Modular Delivery Kits
To reduce expensive overseas job-site labor costs, Chinese factories are shipping "Knock-Down (KD)" or fully pre-assembled modular kits. Frame channels, gasket runs, and pivot hardware are pre-milled and test-assembled in the factory prior to packing, minimizing field adjustments.
Enterprise Advantages: Fortor Security Door Co., Ltd.
Fortor Security Door Co., Ltd. is a leading China-based manufacturer specializing in custom aluminum doors, windows, sunrooms, and structural pergolas. Operating from a modern 20,000 square meter factory in Guangdong, China, Fortor combines over 17 years of specialized door and window fabrication experience with a dedicated team servicing B2B clients across 30+ countries.
Strict In-House Production
Profile cutting, CNC milling, frame assembly, glass fitting, and final inspection are completed 100% in-house under strict quality management.
International Certification
Certified series tested against NFRC, AS 2047, CSA, and ENERGY STAR guidelines, backed by comprehensive structural and thermal reports.
Global Project Logistics
Heavy-duty export fumigated plywood crating with local showroom support and project partners in the USA, Canada, Australia, and the Caribbean.
Real Factory Floor & Production Live Showcase
Frequently Asked Questions for B2B Pivot Door Procurement
Is Fortor Security Door Co., Ltd. a direct factory manufacturer or a trading intermediary?
What international building codes and test certifications do your door systems meet?
How do pivot doors perform against severe wind-driven rain and air leakage?
Can sizes, frame finishes, hardware brands, and glass options be customized?
What is the standard lead time from drawing approval to port dispatch?
How are oversized glass pivot doors packed to prevent damage during ocean transit?
What information is required to receive a formal structural engineering proposal and quote?
Ready to Specify Custom Pivot Doors for Your Project?
Connect directly with our engineering team in Guangdong to receive structural shop drawings, thermal calculation reports, and factory-direct price estimates within 24 hours.
