Luxury Large Opening Aluminum Sliding Glass Patio Doors for Garden
- Profile Depth: 120mm - 185mm
- Glass Type: 6mm+1.52PVB+6mm Laminated
- Acoustic Rating: Rw 38 dB
Factory Direct Catalog
Engineered Laminated Glass Aluminum Door Systems
Precision-extruded thermal break profiles integrated with multi-layer PVB/SGP laminated safety glass for global commercial, residential, and resort architectures.
Hotel Room Glass Interior Casement Door With Lock Kitchen House Bedroom Door Office Aluminum Frame Swinging Glass Swing Door
- Profile Alloy: 6063-T5 Thermal Break
- Safety Glass: Double Laminated Low-E
- Application: Hotel & High-End Office

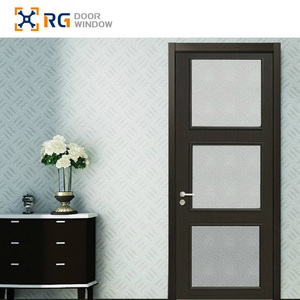

RG50 Soundproof Aluminum Casement Door Double Tempered Glass Slim Design for Home
- Frame Width: 50mm Slim Sightline
- Sound Isolation: Up to STC 42
- Seal System: EPDM Triple Gaskets
RG50 Casement Door Soundproofing Double Tempered Glass Aluminum Doors Slim Open Door For Home
- Glazing Spec: 5mm+0.76PVB+5mm Laminated
- Hardware: German Multi-Point Lock
- Thermal Strip: PA66-GF25 Polyamide
AS2047 Australia Balcony Aluminum Sliding Glass Door Large Double Tempered Glass Stacker Doors for Sale
- Standard: AS2047 & AS1288 Certified
- Wind Load: 4500 Pa Structural
- Track Mechanism: Heavy-Duty Stainless Steel
2025 Cool Contemporary Style High Quality Waterproof Casement Door Tempered Glass Side Opening Aluminium Casement Door
- Water Resistance: 600 Pa Pressure Rated
- Finish: AAMA 2605 Powder Coating
- Hinge Rating: 160kg Heavy-Duty Load
Modern Apartment House Internal Black Industrial Studio Clear Glass Door Aluminium Double Interior Metal French Glass Doors
- Style: Minimalist French / Industrial
- Glass Composition: Laminated Acoustic Clear
- Color Finish: Matt Black Anodized
High Quality Aluminium Door Single Double Glass Indoor Single Casement Swing External Or Internal Doors
- Frame Options: Non-Thermal / Thermal Break
- Interlayer: 0.76mm / 1.52mm Acoustic PVB
- Life Cycle: 100,000+ Cycles Tested
Technical Whitepaper
Executive Sourcing Report: Architectural Laminated Glass Aluminum Door Systems
In modern commercial architecture and high-end residential engineering, the selection of exterior fenestration is no longer merely an aesthetic consideration. As global building energy codes tighten under frameworks such as NFRC, ENERGY STAR, AS2047, and the European EN 14351-1 standard, building envelopes demand structural solutions that integrate wind load resistance, thermal isolation, impact security, and acoustic mitigation.
Laminated glass aluminum doors have emerged as the gold standard for premier architectural applications. Combining high-tensile 6063-T5/T6 aluminum alloy extrusion frames with multi-layered Polyvinyl Butyral (PVB) or SentryGlas® (SGP) ionoplast interlayers, these door assemblies deliver uncompromised structural integrity while achieving slim visual profiles. This technical guide outlines the core engineering criteria, compliance requirements, and manufacturing benchmarks essential for B2B procurement managers, architects, and structural contractors.
Information Gain Insight: Standard tempered glass breaks into small granular pieces upon impact, completely vacating the door frame. Laminated architectural glass incorporates an engineered polymeric interlayer that retains glass fragments upon fracture, maintaining the structural barrier against forced entry, hurricane debris, and air infiltration.
1. Structural Frame Metallurgy & Thermal Barrier Technology
The foundation of any high-performance aluminum door lies in its profile metallurgy and thermal break configuration. Premium manufacturers utilize primary-grade 6063-T5 or T6 aluminum extrusions with a nominal wall thickness ranging from 2.0mm to 3.0mm for heavy-duty structural doors. To prevent thermal bridge dissipation across interior and exterior environments, advanced systems incorporate glass-fiber reinforced polyamide thermal break strips (PA66-GF25).
The insertion of 24mm to 34mm PA66-GF25 thermal insulation strips significantly lowers the door assembly's overall U-Factor, preventing interior condensation in sub-zero climates while retaining cooled air in tropical or desert environments.
| Performance Vector | Standard Tempered Double Glass | PVB Laminated Insulated Glass | SGP Structural Laminated Glass |
|---|---|---|---|
| Impact Security | Basic Safety Impact | High Intrusion Resistance | Severe Hurricane & Blast Rated |
| Post-Breakage Integrity | Immediate Collapse | Stays Intact in Frame | High Rigid Post-Breakage Capacity |
| Sound Reduction (Rw) | 28 - 32 dB | 36 - 42 dB | 38 - 44 dB |
| UV Radiation Block | ~60% Blockage | > 99% UV Blockage | > 99% UV Blockage |
| Typical Applications | Standard Interior Dividers | Residential Patios & Balconies | Coastal Resorts & High-Rise Storefronts |
2. Interlayer Mechanics: PVB vs. SGP (Ionoplast) Interlayers
When specifying laminated glass aluminum doors, engineering specifications must define the exact interlayer chemistry based on wind-load calculations and building height:
- Polyvinyl Butyral (PVB): The standard interlayer for sound reduction and security. Ranging from 0.76mm to 1.52mm in thickness, PVB offers exceptional elastomeric energy absorption, dampening ambient noise frequencies between 100Hz and 4000Hz while blocking 99% of solar ultraviolet radiation.
- SentryGlas® Ionoplast (SGP): Five times stronger and up to 100 times stiffer than conventional PVB materials. SGP laminated doors are essential for hurricane zones (such as Florida Miami-Dade compliance regions) and large-span sliding stacker doors where post-breakage stiffness is mandated by structural engineering codes.
Future Horizon
Key Sourcing & Procurement Trends (2025–2030)
Anticipating shifts in global architectural specs, building energy codes, and smart hardware integration.
Ultra-Slim Sightline Engineering
Architects are driving demand toward ultra-narrow interlock stiles (as slim as 20mm to 25mm). By transferring wind load structural stress directly to SGP-laminated glass panels, manufacturers achieve floor-to-ceiling glass coverage without bulky metal frames.
Passive House & Net-Zero Compliance
Future global procurement mandates U-factors below 1.1 W/m²K. Dual thermal break profile chambers combined with argon-filled, warm-edge spacer triple glazing laminated units are becoming baseline specifications for European and North American projects.
Smart Access & Mechatronic Locks
B2B commercial buyers are moving away from manual locks. Modern aluminum laminated swing and pivot doors feature integrated motorization, biometrics, concealed automatic operators, and central building management system (BMS) connectivity.
Circular Materials & Low Carbon Aluminum
Enterprise developers actively track embodied carbon. Sourcing aluminum doors extruded using hydro-powered smelting processes (less than 4.0 kg CO2/kg Al) paired with recyclable EPDM gaskets is fast becoming a core tender requirement.
Factory Advantage
Enterprise Manufacturing Power: Fortor Security Door Co., Ltd.
As a specialized B2B manufacturer operating a 20,000 square meter manufacturing base in Guangdong, China, Fortor Security Door Co., Ltd. provides end-to-end engineering, profile machining, structural assembly, and international packaging for clients in over 30 countries. Backed by 17+ years of dedicated door and window manufacturing experience, Fortor operates as an integrated supply chain partner for commercial builders, hotel developers, and architectural importers.
In-House CNC Fabrication
Utilizing high-precision multi-axis CNC machining centers, Fortor executes profile cutting, corner crimping, lock mortising, and hardware slot milling to millimeter tolerances, ensuring zero site-assembly friction.
Global Certification Rigor
Product lines undergo full-scale testing referencing AS 2047 (Australia), NFRC / AAMA (USA), CSA (Canada), and ENERGY STAR benchmarks, covering air infiltration, water penetration resistance, and structural deflection.
Export Packaging Protection
Every order undergoes 100% pre-shipment assembly inspection. Doors are packed using multi-layer protective film, foam corner guards, fumigated wooden crates, and steel-strapped ocean transport cradles to guarantee damage-free arrival.
Technical Project Execution Workflow
To ensure flawless delivery on complex B2B tenders, Fortor enforces a 6-step project engineering protocol:
- Requirements & Wind-Load Analysis: Project architectural drawings and climate data (wind pressure, rainfall index) are evaluated by structural engineers.
- System Specification & Glass Selection: Matching profile series (e.g., 75 Casement, 120 Sliding, 68 Folding) with appropriate PVB/SGP glass thicknesses.
- CAD/BIM Shop Drawing Approval: Generating millimeter-accurate elevation and cross-section shop drawings for architectural sign-off prior to extrusion cutting.
- Precision Manufacturing & Assembly: Profile milling, thermal strip crimping, double-sealed EPDM installation, and hardware calibration.
- Factory QA Water & Air Mockup Test: Random sampling of assembled units subjected to pressure-chamber water penetration and air leakage tests.
- Logistics Sequencing & Site Guidance: Labeled crate packing mapped to building installation order, accompanied by complete installation manuals and remote engineering support.
Buyer Intelligence
Frequently Asked Questions in Door Sourcing
Direct technical answers to common questions raised by importers, architects, and structural contractors.
What makes laminated glass superior to double-pane tempered glass for aluminum doors?
Laminated glass consists of two or more glass sheets bonded together with a flexible interlayer (PVB or SGP). Unlike standard double-pane tempered glass, which shatters into loose fragments upon severe impact, laminated glass remains adhered to the internal polymer layer even when cracked. This provides continuous security against forced entry, prevents falling glass hazards in multi-story buildings, delivers superior acoustic dampening (Rw ratings up to 42dB), and blocks 99% of harmful solar UV radiation.
How do aluminum laminated doors comply with coastal hurricane and wind-load codes?
Compliance with severe weather standards (such as Florida's Miami-Dade protocol or Australia's AS 2047 structural load tests) requires structural pairing: heavy-wall 6063-T6 aluminum alloy profiles (wall thickness ≥ 2.5mm) paired with SGP (SentryGlas®) structural laminated glass. SGP interlayers provide post-breakage rigidity, resisting wind forces exceeding 4500 Pa even if the outer glass skin is impacted by storm debris.
Can Fortor customize frame colors, hardware brands, and glass specifications for large projects?
Yes. Every order manufactured by Fortor Security Door Co., Ltd. is custom-built to project specifications. Profile finishes include AAMA 2605 fluorocarbon powder coating, anodizing (matt or polished), and thermal transfer wood-grain effects. Hardware options range from premium in-house heavy-duty systems to international brands such as Siegenia, Hoppe, and CMECH. Glazing can be customized with Low-E coatings, argon gas fills, tinting, or ceramic frit patterns.
What thermal break technology is used to prevent frame condensation?
Fortor utilizes PA66-GF25 (Polyamide 66 reinforced with 25% glass fiber) thermal break strips crimped between the inner and outer aluminum profile chambers. This mechanical barrier prevents thermal conductive transfer, maintaining interior frame temperatures above the dew point, preventing surface condensation, and assisting buildings in meeting NFRC and ENERGY STAR thermal compliance targets.
What lead times should B2B buyers expect for custom laminated aluminum door orders?
Standard manufacturing lead time is typically 25 to 35 calendar days following formal CAD shop drawing approval and deposit receipt. For specialized custom extrusions, custom RAL color matching, or specific glass certification testing, lead times may extend to 40 days. Fixed production schedules are issued prior to cutting to align with your project's ocean freight logistics program.
How does Fortor prevent delamination of laminated glass in high-humidity or tropical climates?
Delamination occurs when moisture penetrates the edge seal of laminated glass, reacting with the PVB interlayer. Fortor mitigates this by applying edge sealant protection during the laminating process and incorporating engineered internal pressure-equalized drainage slots within the aluminum door sashes. This ensures water drains out of the frame without pooling around the glass edges.
What international test reports and certificates can be provided for building permits?
Fortor provides comprehensive factory test reports and third-party laboratory test data covering AS 2047 / AS 1288 (Australia), NFRC thermal ratings, CSA compliance documentation for North America, and ISO 9001 quality management certificates. Specific series documentation can be submitted directly to project engineers and municipal building authorities for approval.
Partner with a Leading Laminated Glass Aluminum Door Manufacturer
Contact our engineering sales team today for preliminary project reviews, system selection guidance, structural wind-load advice, and factory-direct pricing for your upcoming commercial or residential development.
